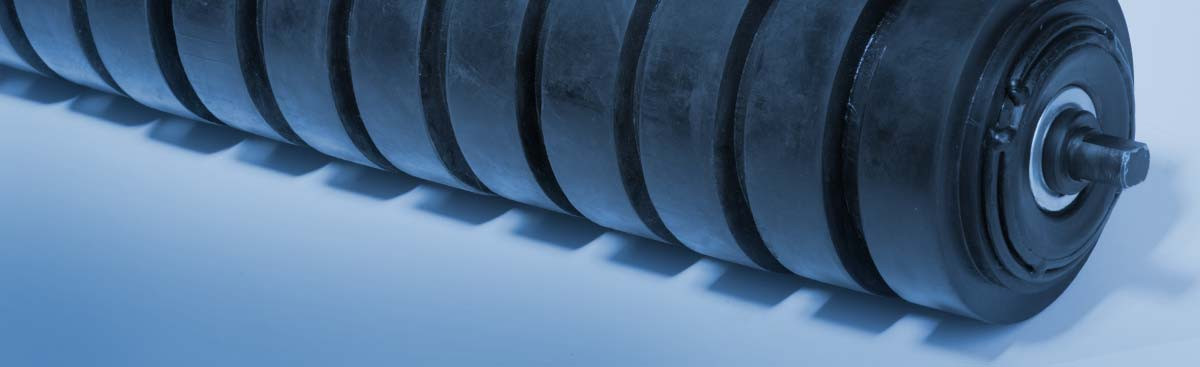

Standard diameters:

89/63, 108/63, 108/89, 133/89, 133/108, 159/133

Design

• construction pipe longitudinally welded EN 10 219, 3 mm thick
• drawn steel round dia. 20 mm, h9, cl. 11109
• rubber discs / discs 68 +/- Shore A in diameter 89, 108, 133, 159 mm
• steel lids from deeply drawn plate, 2 mm thick, welded to the roller body (their design may vary depending on the roller diameter)
• bearing 6204 2RS C3
• four-part labyrinth seal with a cap in ZN design (galvanized sheet)
• securing ring for the shaft D20
• surface finish RAL 5015 blue (version with securing rings in a surface finish: black RAL 9005)

It can be supplied with rings to prevent the rollers from sliding along the cylinder body

Example how to order

Wheel roller diameter 89/63/250/6204/20/14, L1 = 258, L2 = 278 mm - 10 pcs

surface finish RAL 5015 blue, four-part labyrinth seal ZN cap

Wheels and discs can be freely combined.

Dimensions not listed in the table will be produced after customer‘s specification.
