Standard diameters:

108/63, 133/63, 133/89, 159/89

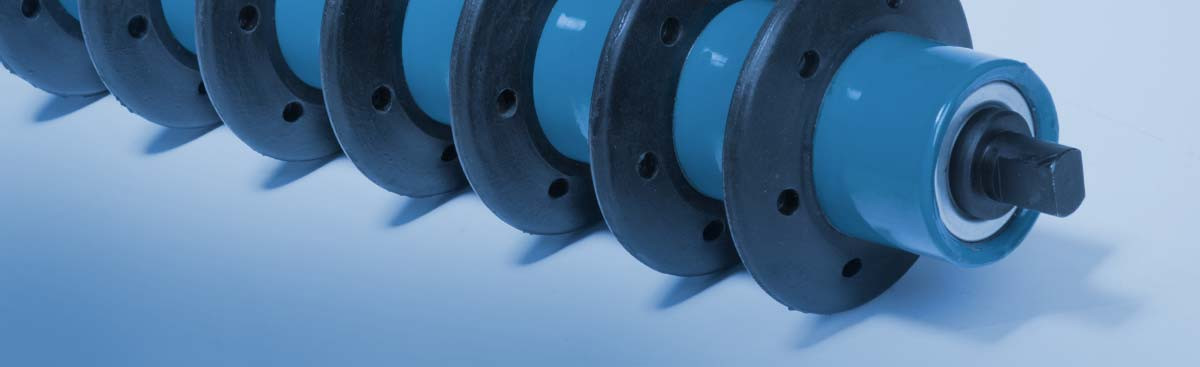

Design

• construction pipe longitudinally welded EN 10 219, steel pipe thickness 3 mm
• rubber discs 68 +/- Shore A 108,133 or 159 mm in diameter
• drawn steel round dia. 20 mm, h9, cl. 11109
• steel lids from a deeply drawn plate, thickness 2 mm, welded to the roller body (their design may vary depending on the roller diameter)
• bearing 6204 2 RS C3
• four-part labyrinth seal with cap in ZN design (galvanized sheet)
• securing ring for a shaft D20
• surface finish RAL 5015 blue

Example how to order

Disc diam. 108/63/600/6204/20/14, L1 = 608, L2 = 648, 10xdisc - 10 pcs

surface finish RAL 5015 blue, four-part labyrinth seal ZN cap

Dimensions not listed in the table will be produced after customer specification.

The arrangement of the discs as well as the shaft mounting can be adjusted.
