Standard diameters:

108/63, 133/63, 133/89, 159/89

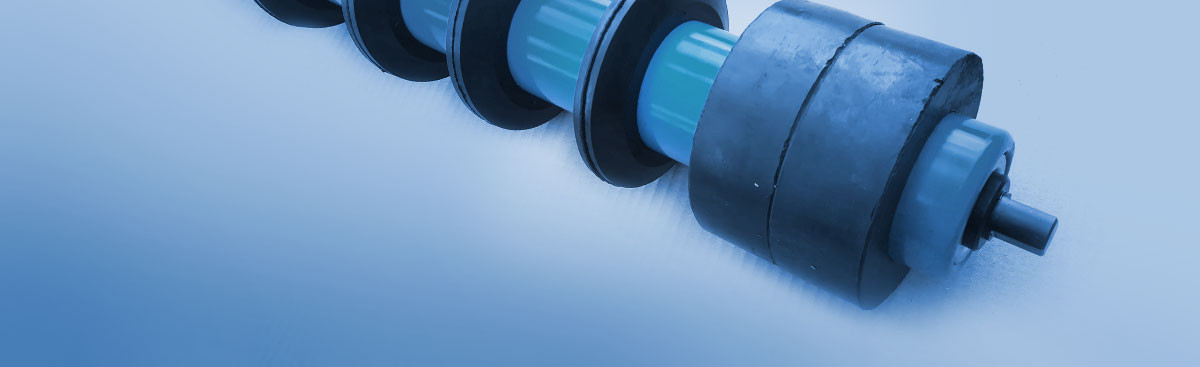

Design

• construction pipe longitudinally welded EN 10 219, 3 mm thick
• drawn steel round dia. 20 mm, h9, cl. 11109
• rubber discs / wheels 68 +/- Shore A 108, 133 or 159 mm in diameter
• steel lids from deeply drawn plate 2 mm thick, welded to the roller body (their design may vary depending on the roller diameter)
• bearing 6204 2RS C3
• four-part labyrinth seal with cap in ZN design (galvanized sheet)
• securing ring for shaft D20
• surface finish RAL 5015 blue

Example how to order

Disc wheel diam. 108/63/750/6204/20/14, L1 = 608, L2 = 648 mm, 2 + 3 + 2, - 10 pcs

surface finish RAL 5015 blue, four-part labyrinth seal ZN cap

Wheels and discs can be freely combined.

Dimensions not listed in the table will be produced after customer’s specification.

The arrangement of the discs as well as the shaft mounting can be adjusted.
