Standard diameters:

63, 89,108

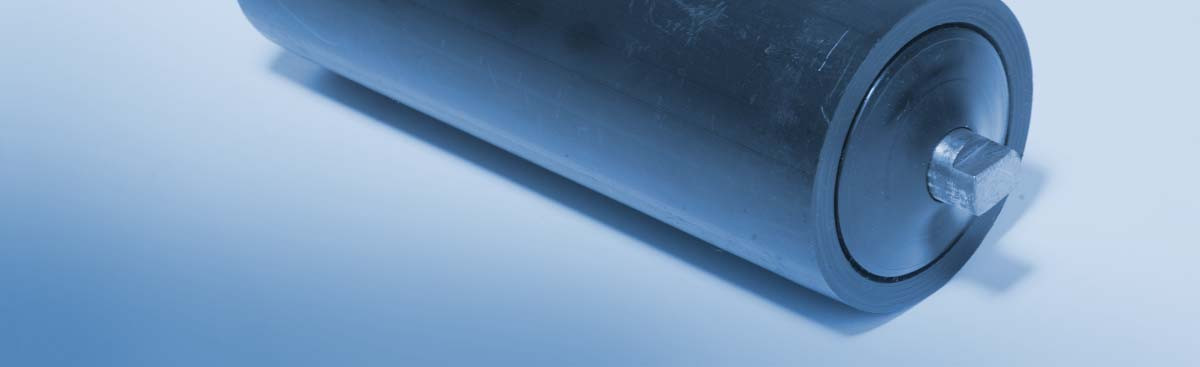

Design

• plastic pipe PE-HD 90x10
• drawn round steel dia. 20 mm, h9, cl. 11 109
• plastic caps (hot-pressed into the pipe)
• bearing 6204 2 RS C3
• four-part labyrinth seal with a cap in ZN design (galvanized sheet)
• securing ring for a shaft D20

Example how to order

Plastic diam. 89/250/6204/20/14, L1 = 258, L2 = 278 mm – 10 pcs

four-part labyrinth seal ZN cap

Dimensions not listed in the table will be produced after customer‘s specification.

The shaft mounting can be adjusted.
