Ways of screen tensioning
Ways of screen tensioning

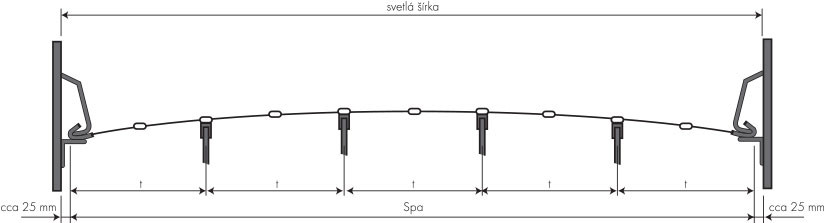

Transverse tensioning

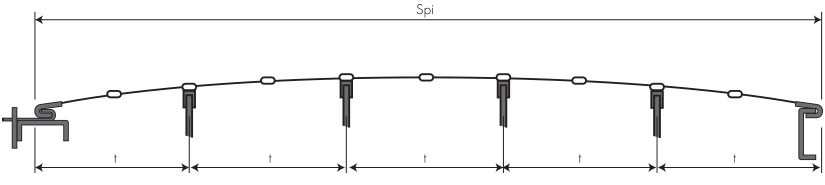

Longitudinal tension
Types of tensioning folds

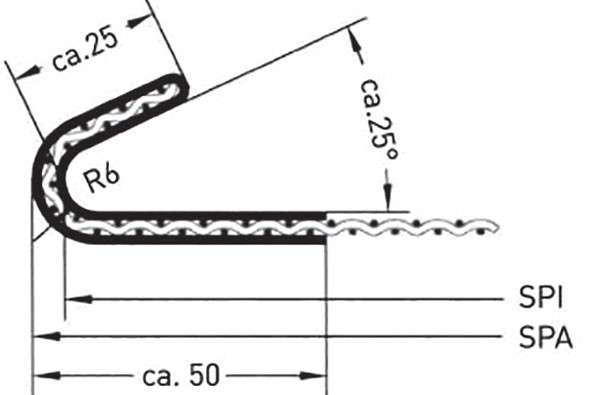

A FOLD
sheet thickness 1.5 mm, 2 mm

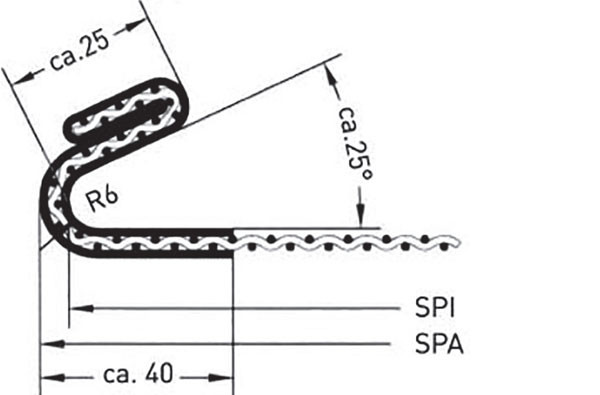

A FOLD double

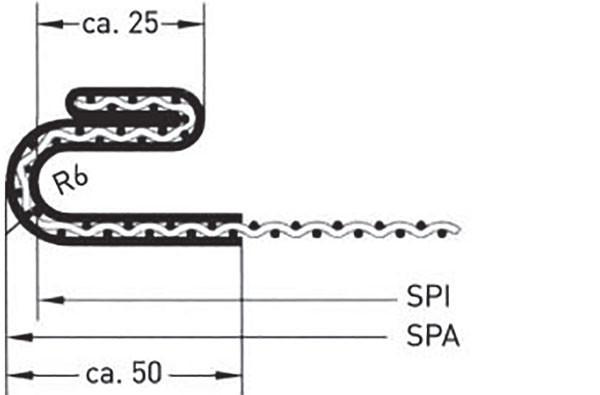

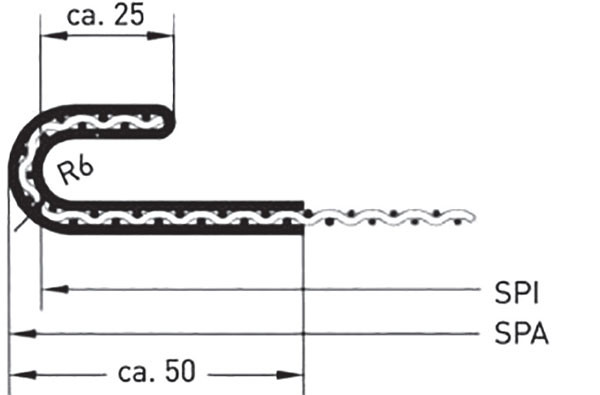

B FOLD
A FOLD double

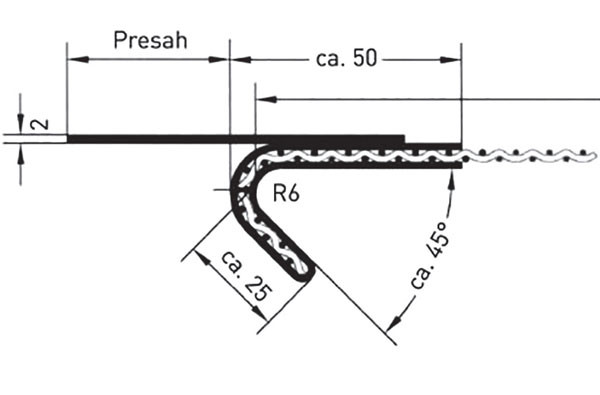

A FOLD

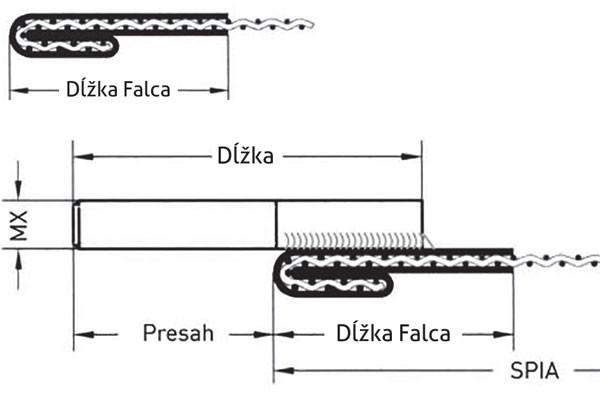

With overlap plate
v
With welded thread M10 - M20
A FOLD
Welded up
A FOLD
Welded down
A FOLD
For longitudinal tensioning

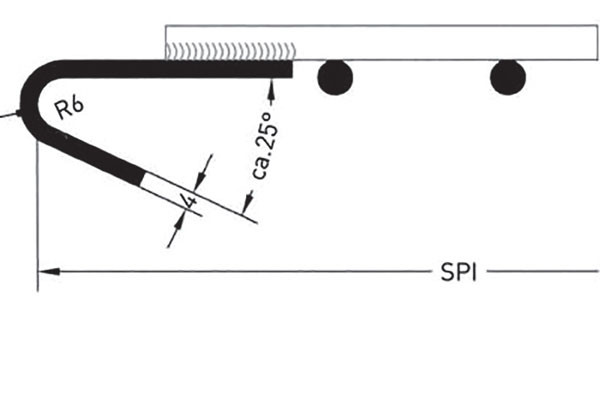

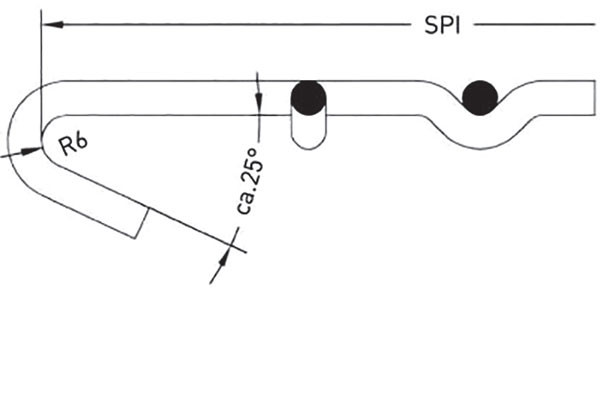

A FOLD
Bent wires
