Design

• open profile, U-shaped, EN 101 62, from B1000 mm hot-rolled U-shaped S235
• cuttings from a metal sheet S235, thickness 5mm (adequately dimensioned according to the design of a support - thickness 6,8,10 .... mm)
• shims (material thickness 6mm)
• galvanized fasteners (semi-circular head screw with a square neck, washer, hexagon nut)
• surface finish RAL 7001 grey

Example how to order

PHT 650/89/20 degrees / s = 14mm

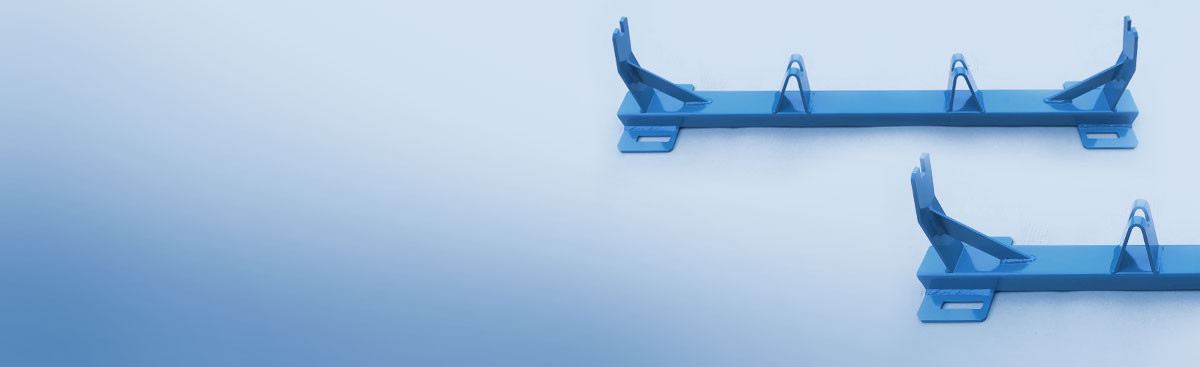

Three-roller upper support for a belt width B650mm, rollers with diameter 89 mm with shaft mounting 14 mm, surface finish RAL 7001 grey

Dimensions not listed in the table will be produced after a customer‘s specification.
